ALL TRIMS: SPORT, OVERLAND, RUBICON, MOJAVE

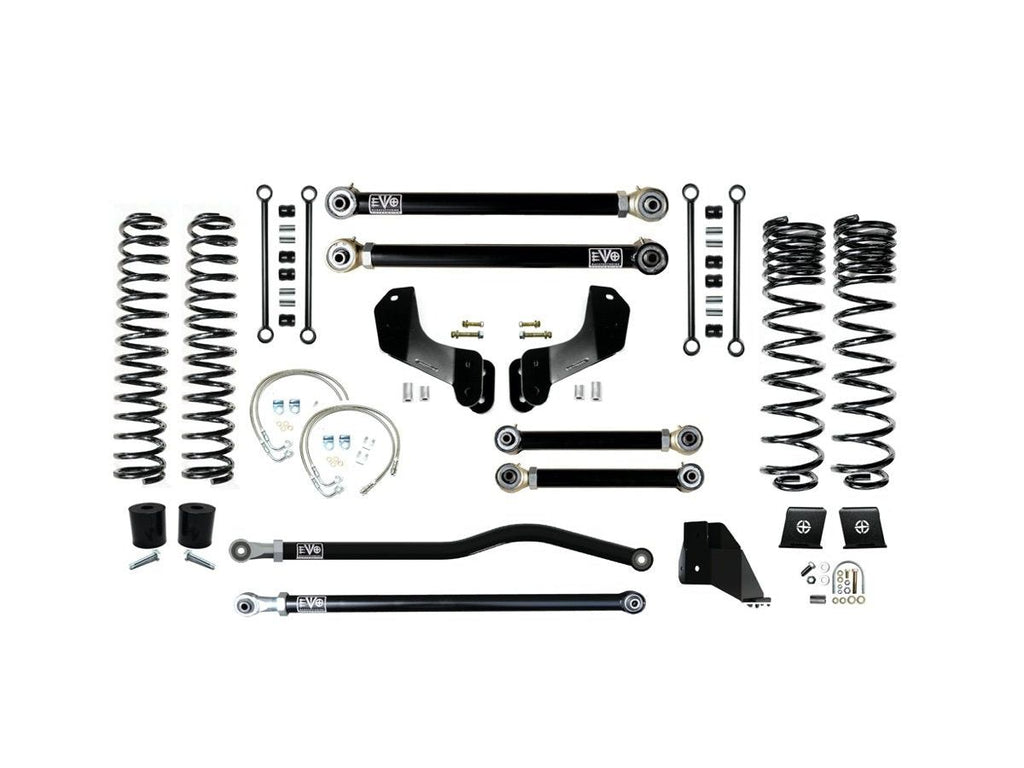

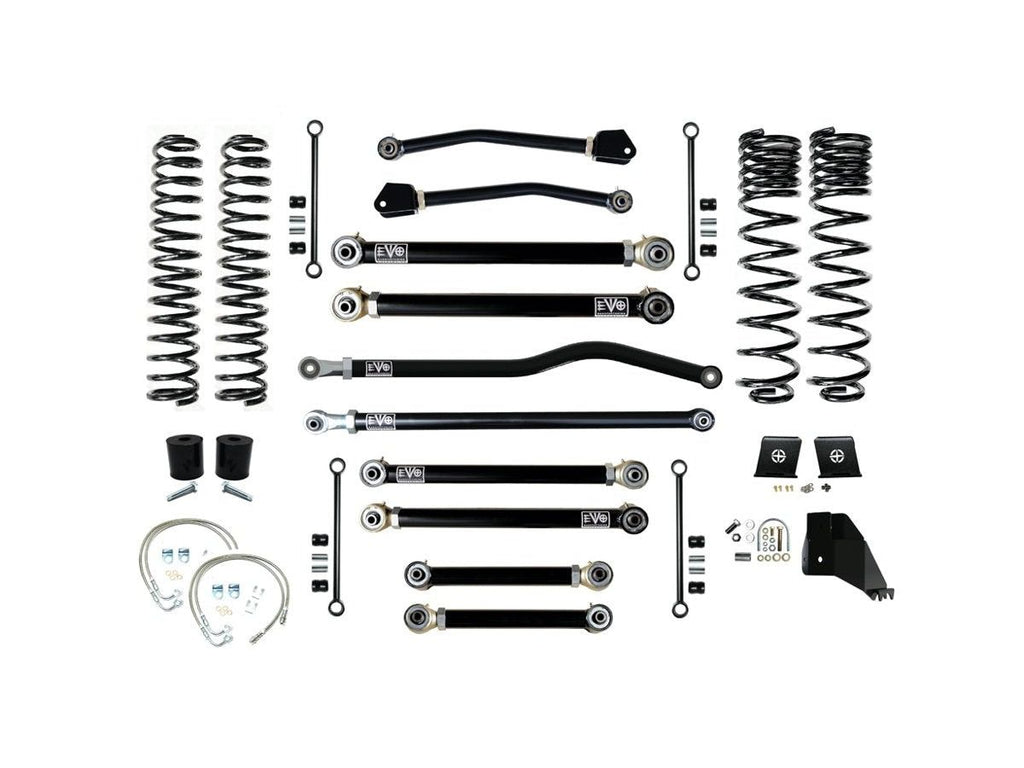

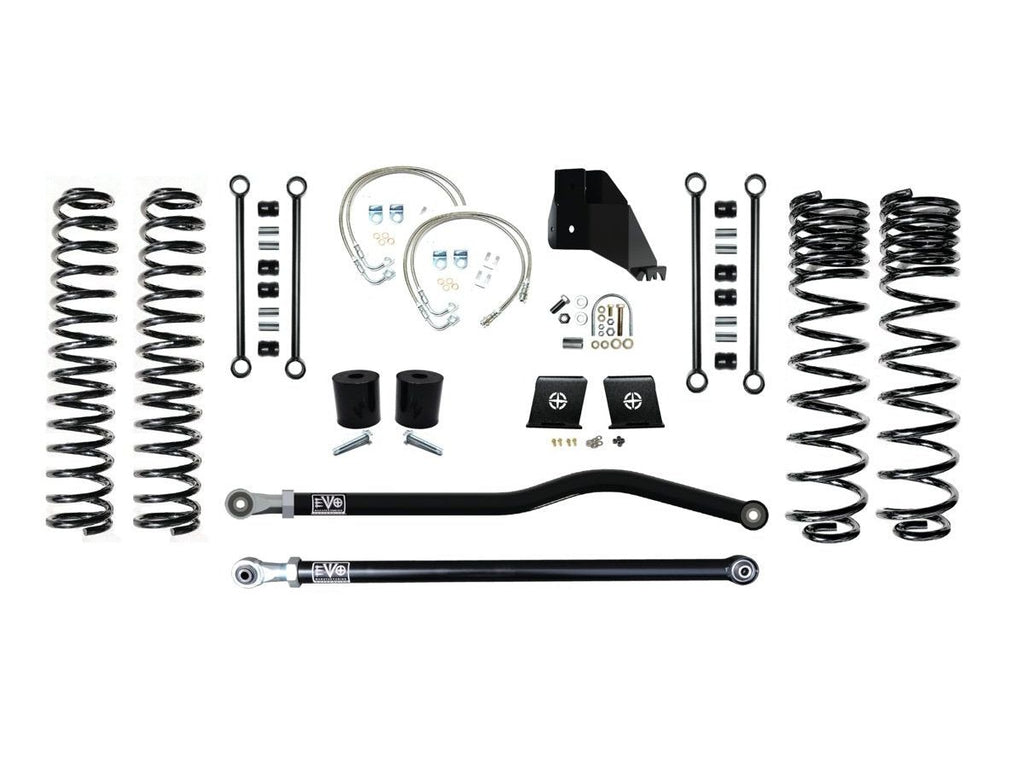

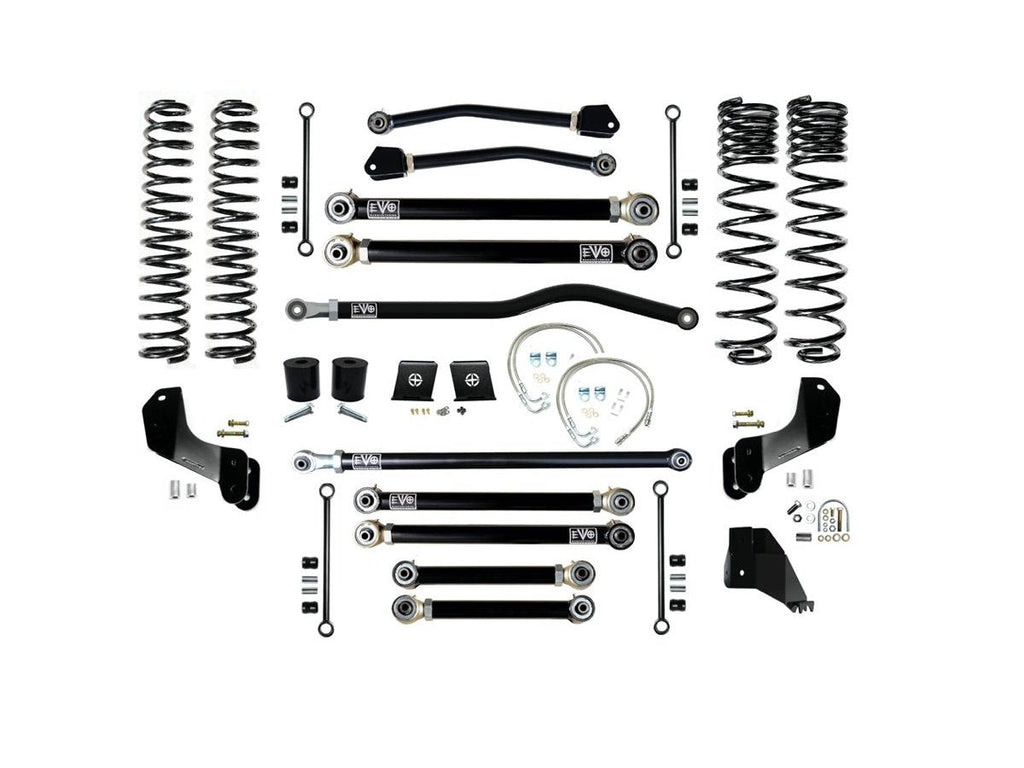

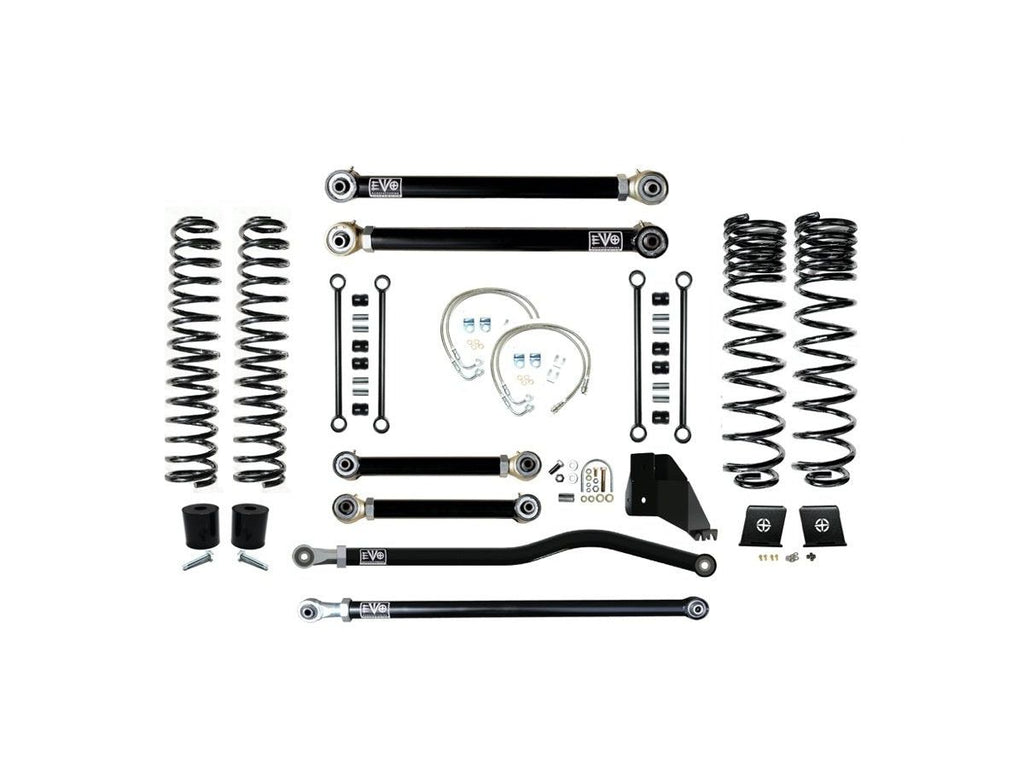

The EVO MFG 6.5” Jeep Gladiator DIESEL JT Enforcer Suspension Systems lift and level your
2020+ Jeep Gladiator JT 6.5”s. The JT Enforcer kits are specifically
designed and engineered to lift your JT and maintain a performance
spring rate, smooth ride quality all while retaining tow capacities.
These kits allow for use of your choice of any aftermarket 6” lift shock
or use of our EVO SPEC tuned 2.5” Remote Reservoir King Shocks. These

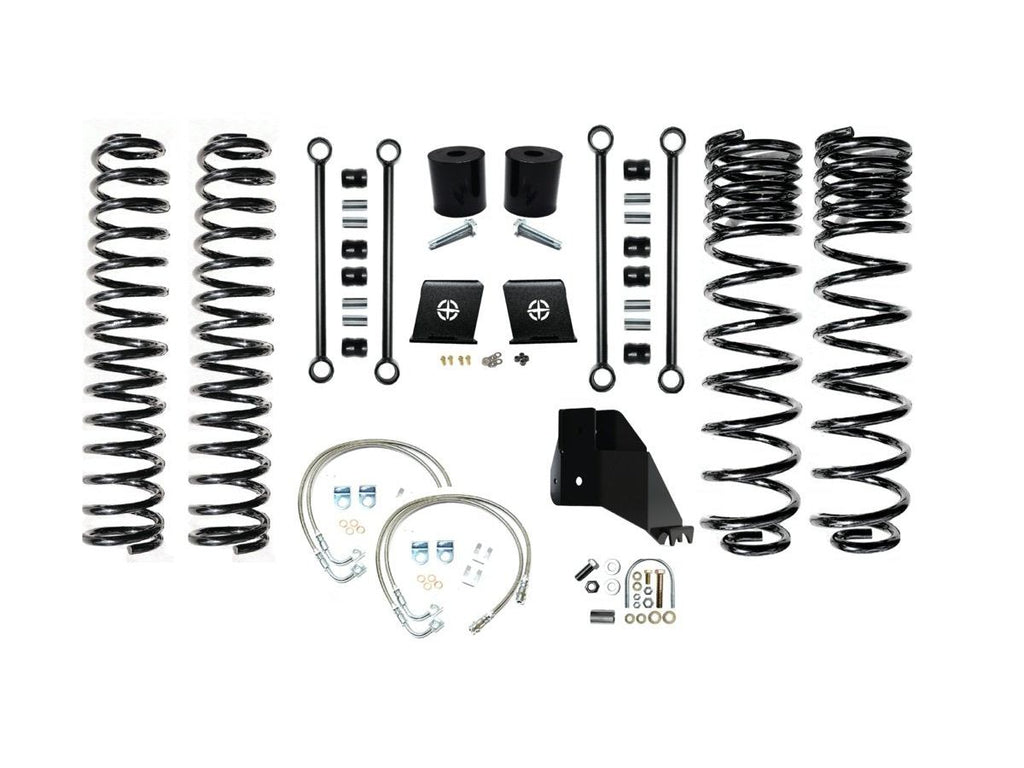

These kits come with a set of 6.5” lift springs specific to the Jeep Gladiator Diesel and will remove most of the factory rake making you stock truck level.
The difference with
EVO MFG Enforcer Overland systems vs EVO MFG Enforcer systems is the use
of front Overland Control Arm Brackets. When lifting your vehicle your
control arms at ride height have a steeper angle towards the floor which
can have some negative effect/chop in ride quality. With the use of the
included Overland Control Arm brackets we relocate the front control arm
mounting locations at the frame. In doing this when lifted we maintain
factory flatter control arm angles and while minimal, we alleviate much
of the chop associated with lifting a Jeep giving even better and more
improved ride quality. Also, in the use of Overland Drop Brackets we
are able to engineer more performance into the front suspension to
improve braking and driveline angles through suspension cycle. Both
kits drive very well, the Overland Kits are better suited for less hard
off-road crawling and more light off road and on road use. The EVO MFG
6.5" JT Enforcer Kits are easy to install using normal tools. No
drilling or cutting. They require no exhaust
modifications. Simple Bolt on installation. EVO MFG JT Enforcer kits
are available in multiple configurations to suit your needs and budget
and are upgradable down the road. All included Enforcer Arms use only rebuildable
free articulating spherical bearings on all ends of each arm giving
restriction free travel and articulation. The included Enforcer arms
are manufactured from large diameter, thick wall DOM Steel Tubing for
ultimate in strength and longevity both on and off the trail. These
kits require wheel spacers or aftermarket wheels with smaller
backspacing and aftermarket front driveshaft. Front and rear adjustable track bars to fine tune axle

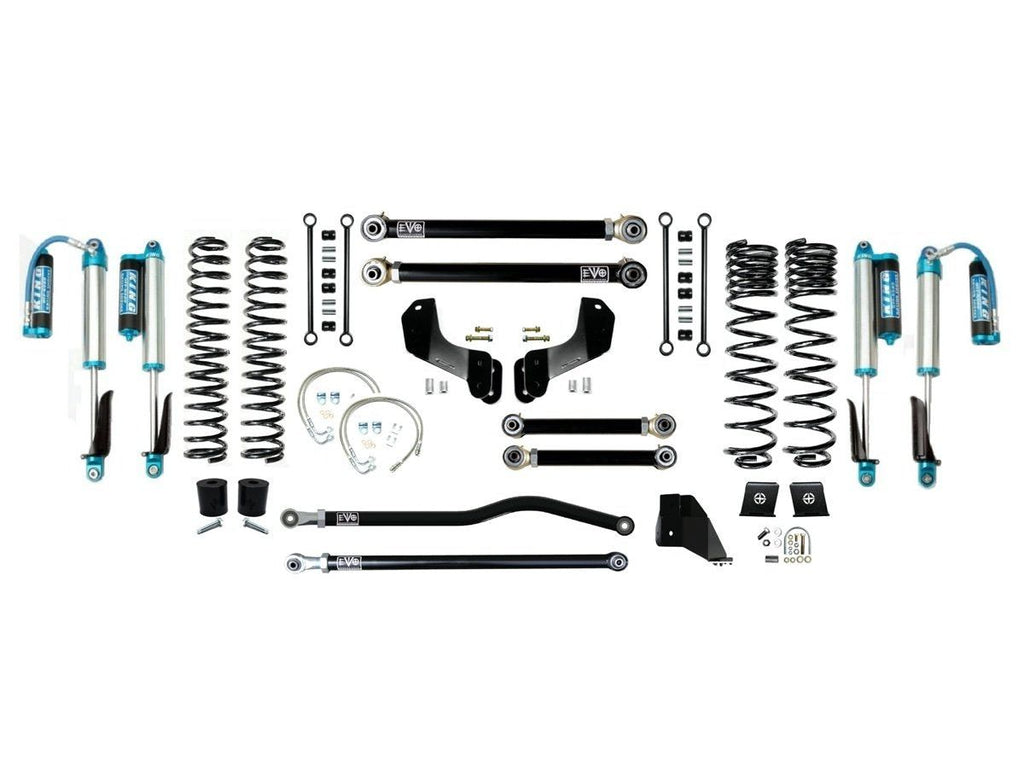

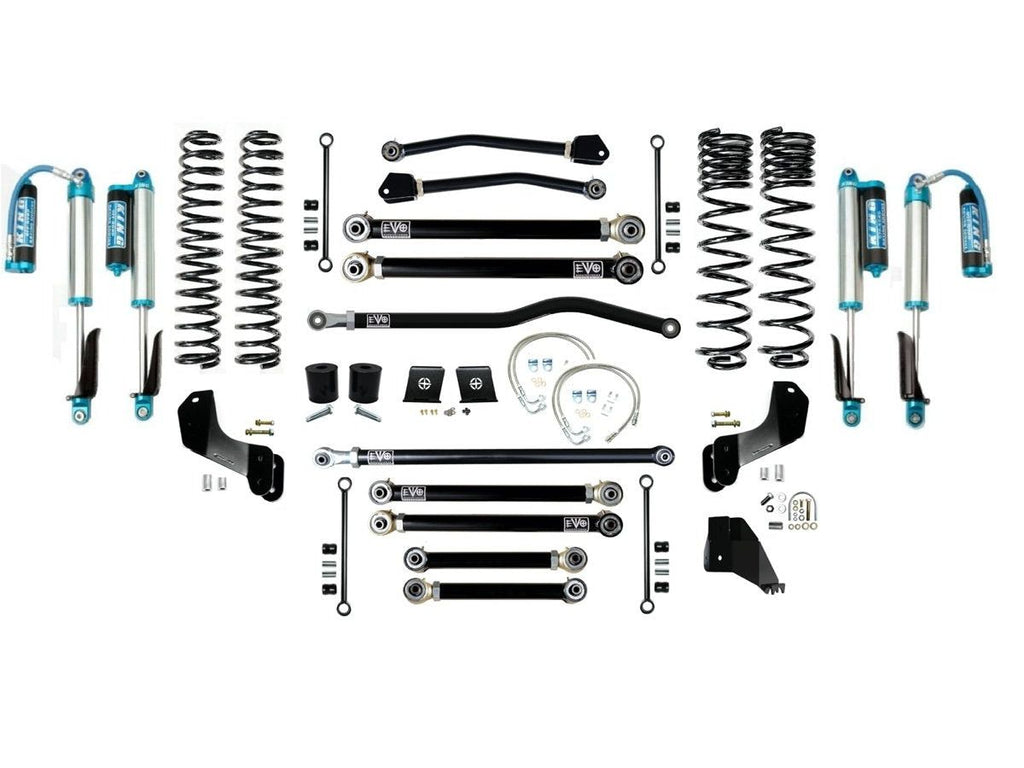

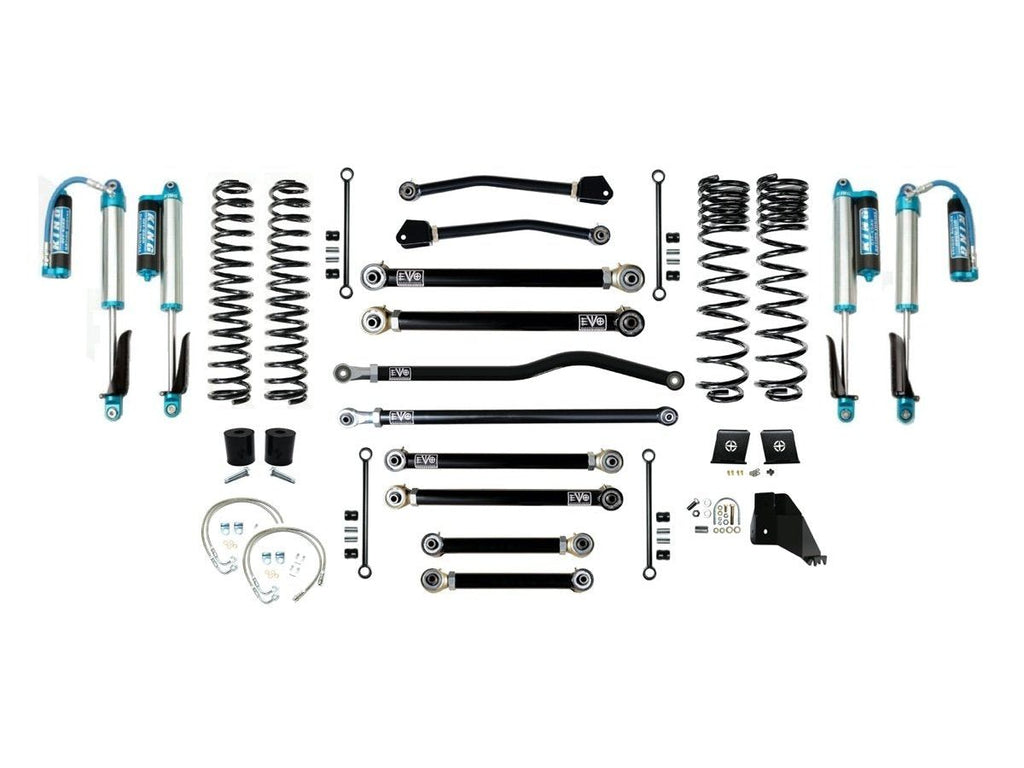

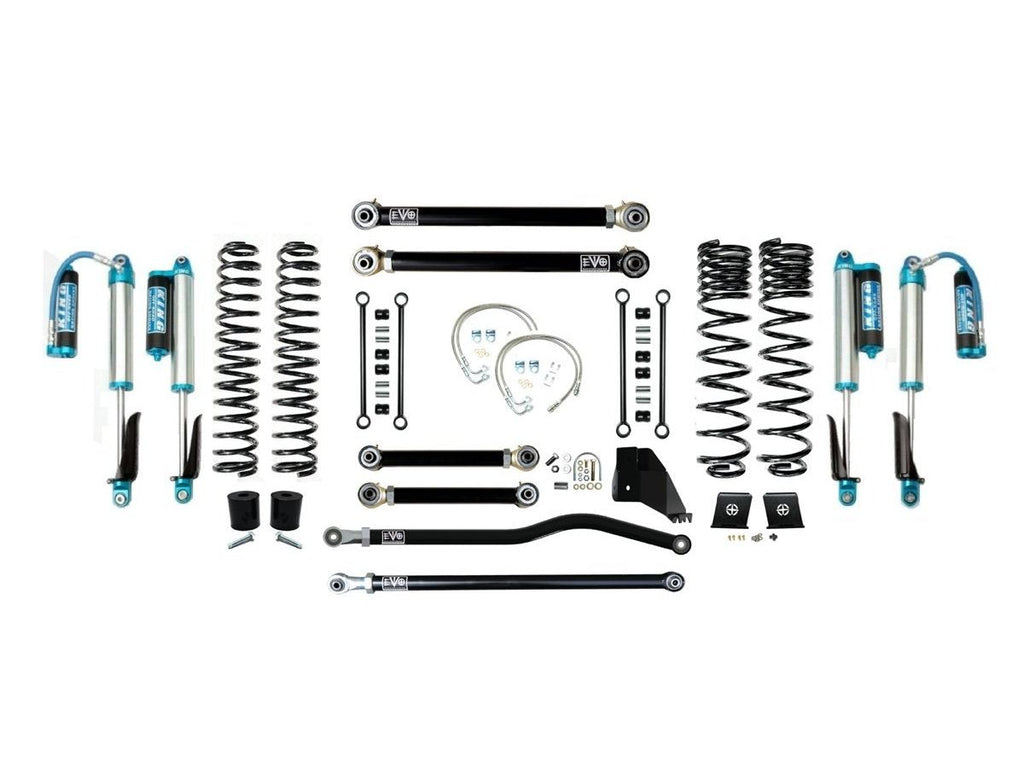

center are included with PLUS “P” kits. “K” Kits include a set of 4 EVO
SPEC Remote Reservoir King Shocks. *FOR 4.5"/6.5" JT Lifts: Front Lower
and Rear Upper Adjustable Control Arms and Front & Rear Adjustable Track
bars are required for proper alignment/install. These components are
included with Stage 3 and Stage 4 "PLUS" Kits.
4.5"/6.5" JT Lifts: Front Lower and Rear Upper Adjustable Control Arms and Front & Rear Adjustable Trackbars are required for proper alignment/install. These are included with Stage 3 and Stage 4 "PLUS" Kits.
6.5" Gladiator kits require an aftermarket front driveshaft. Rear aftermarket driveshaft is recommended. One of many manufacturers is JE Reel 3518JLR-24F. Check with manufacturer for compatibility.
EVO-3027B JL/JT Protek Front Shock Relocation Brackets are recommeded with 2.5" King shocks or with all larger aftermarket shock options. (Not Included)
Upgrades:
EVO-3097VD Front Inner Fenders
EVO-600081KB Front Air Bumps
