ALL TRIMS: SPORT, OVERLAND, RUBICON, MOJAVE

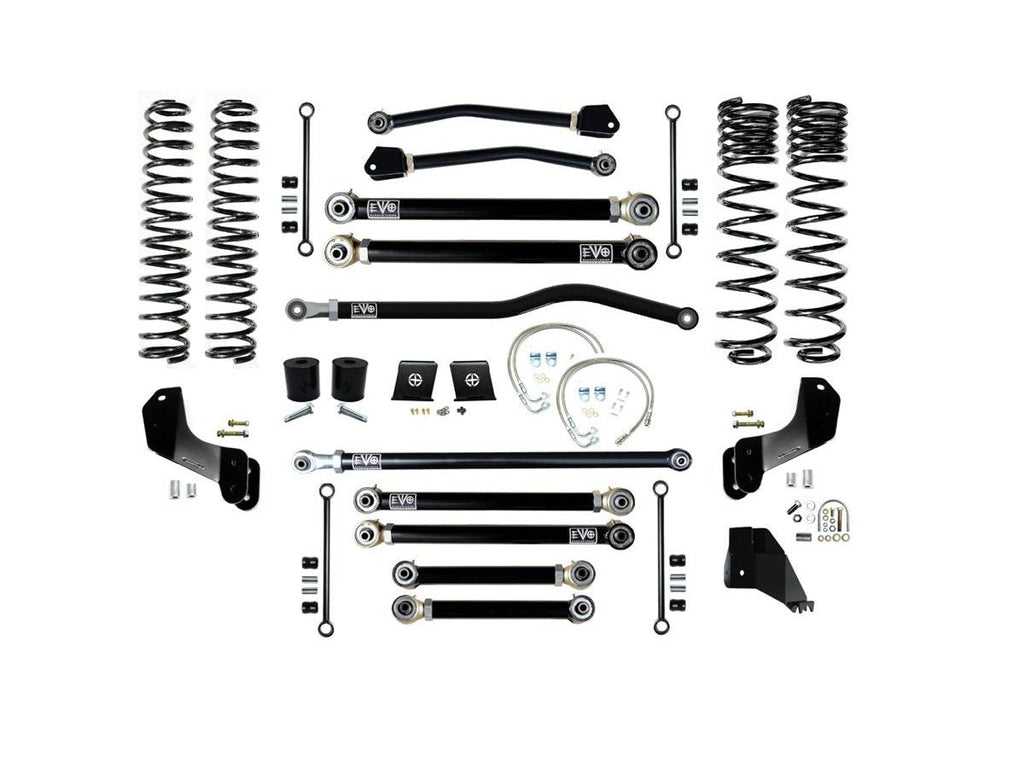

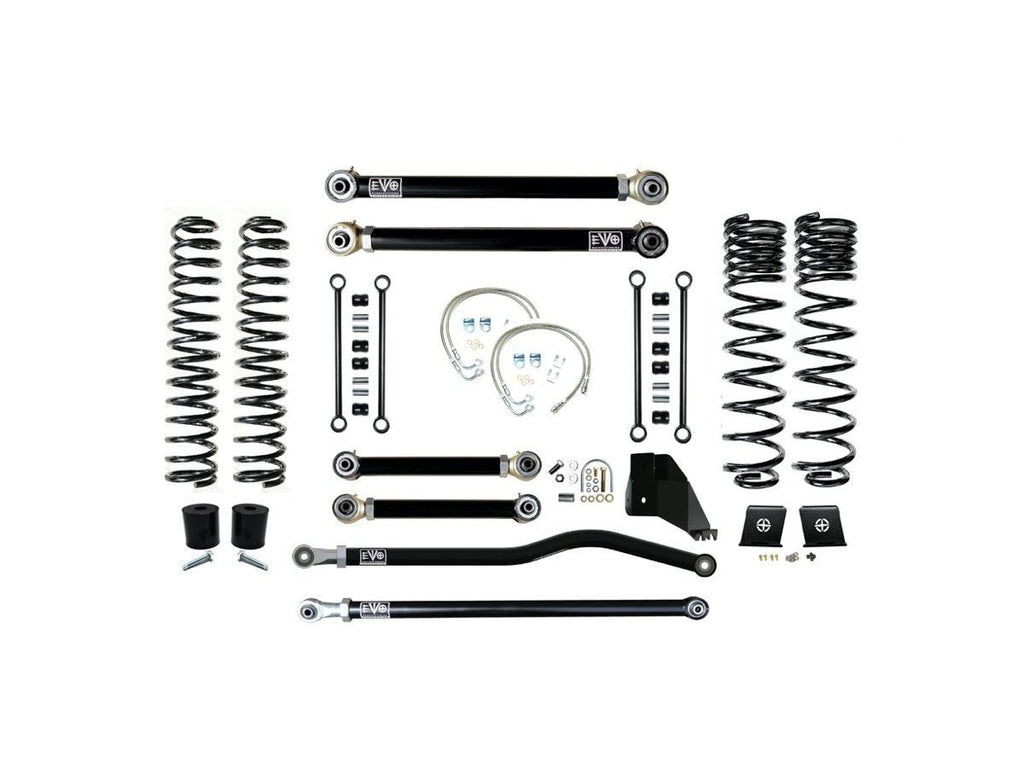

The EVO MFG 6.5” Jeep Gladiator JT Enforcer Suspension Systems are designed and engineered to lift and level your 2020+ Jeep Gladiator JT 6.5”s, while maintaining a performance spring rate and smooth ride quality, and retaining tow capacities. These kits come with a set of 6.5” lift springs specific to each corner which will keep the Jeep Gladiator JT level side to side.

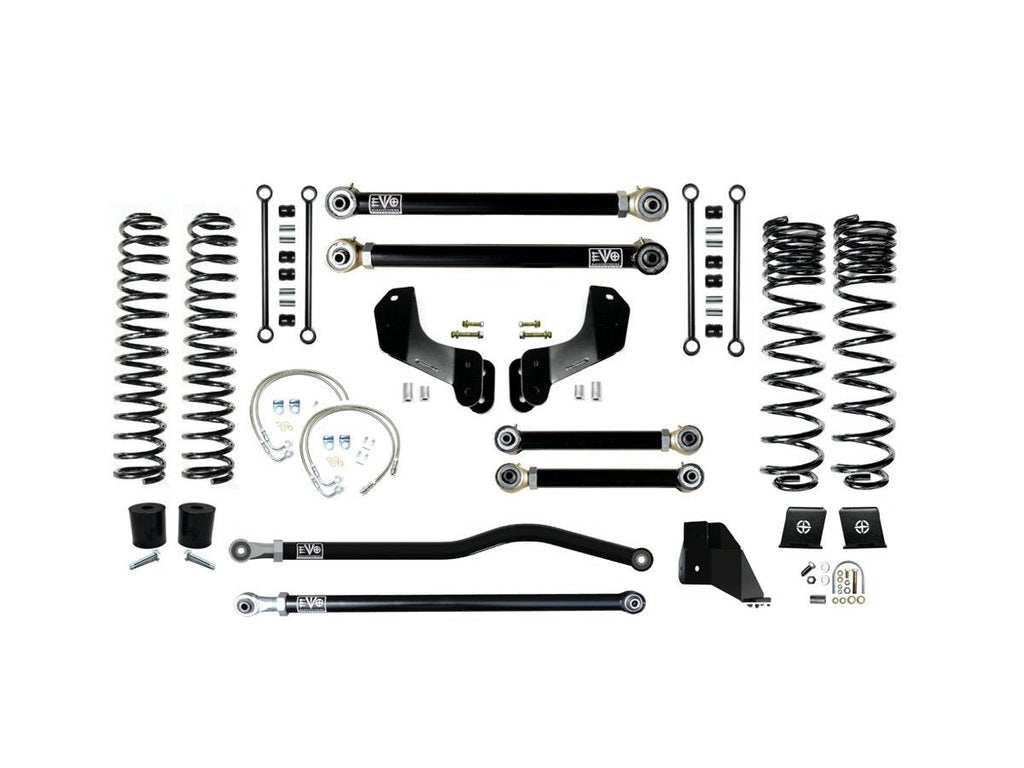

The EVO MFG Enforcer Overland systems include front Overland Control Arm Brackets which help maintain factory flatter control arm angles, improving ride quality and performance. Overland Drop Brackets are also used to engineer more performance into the front suspension to improve braking and driveline angles through suspension cycle.

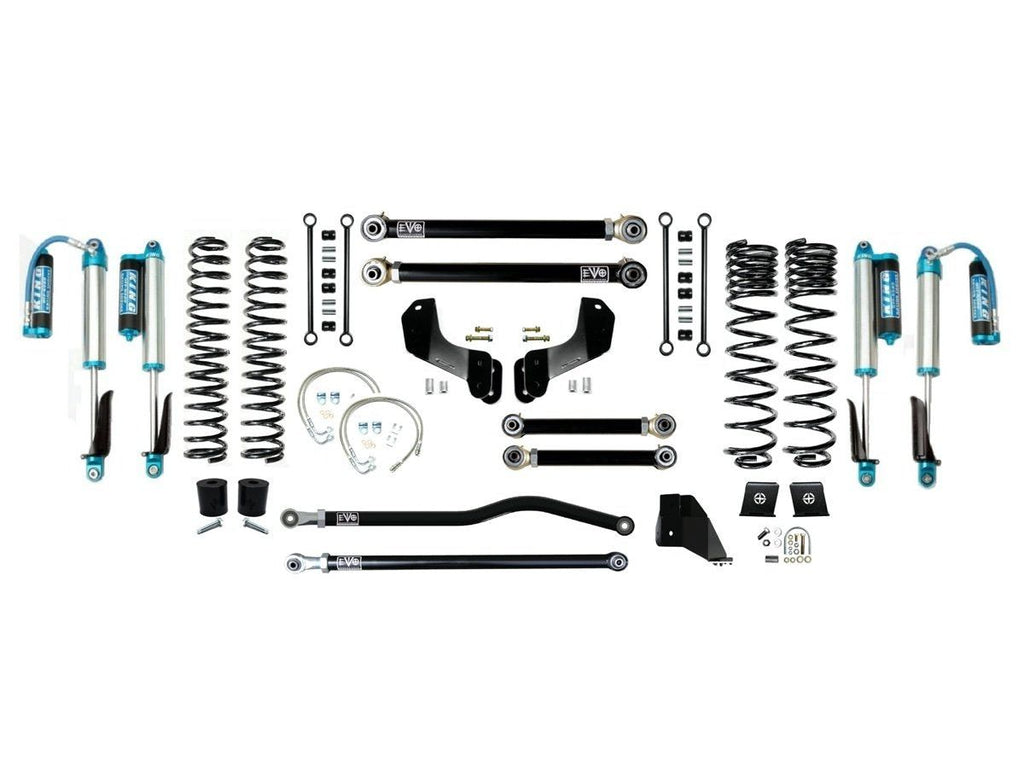

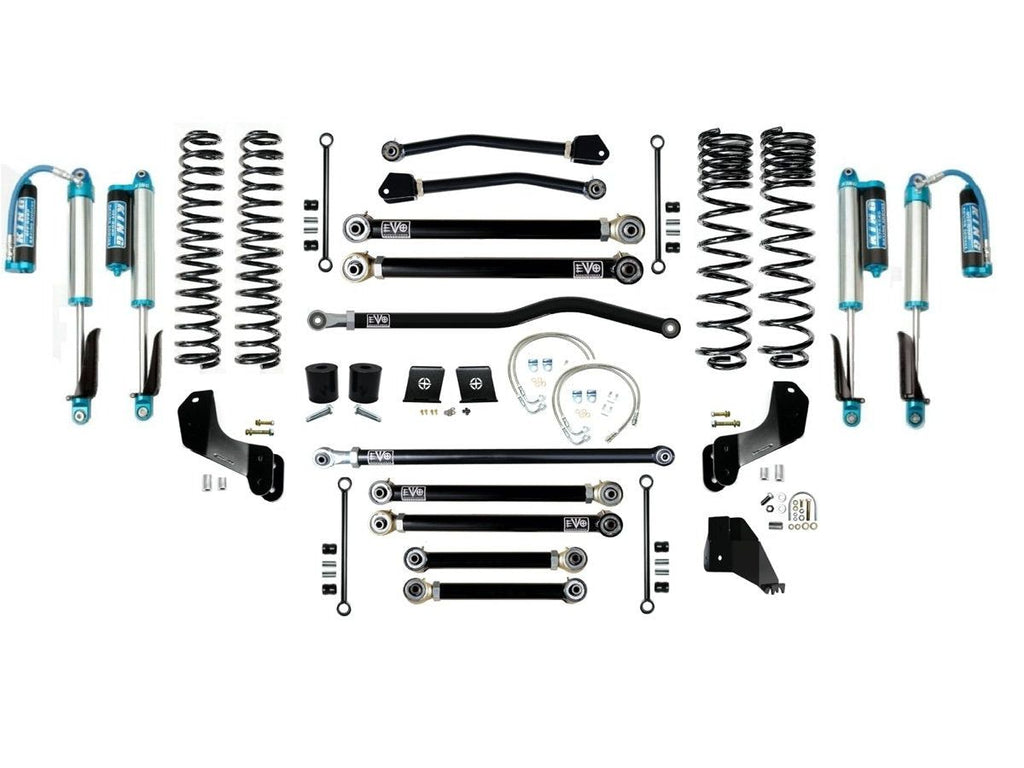

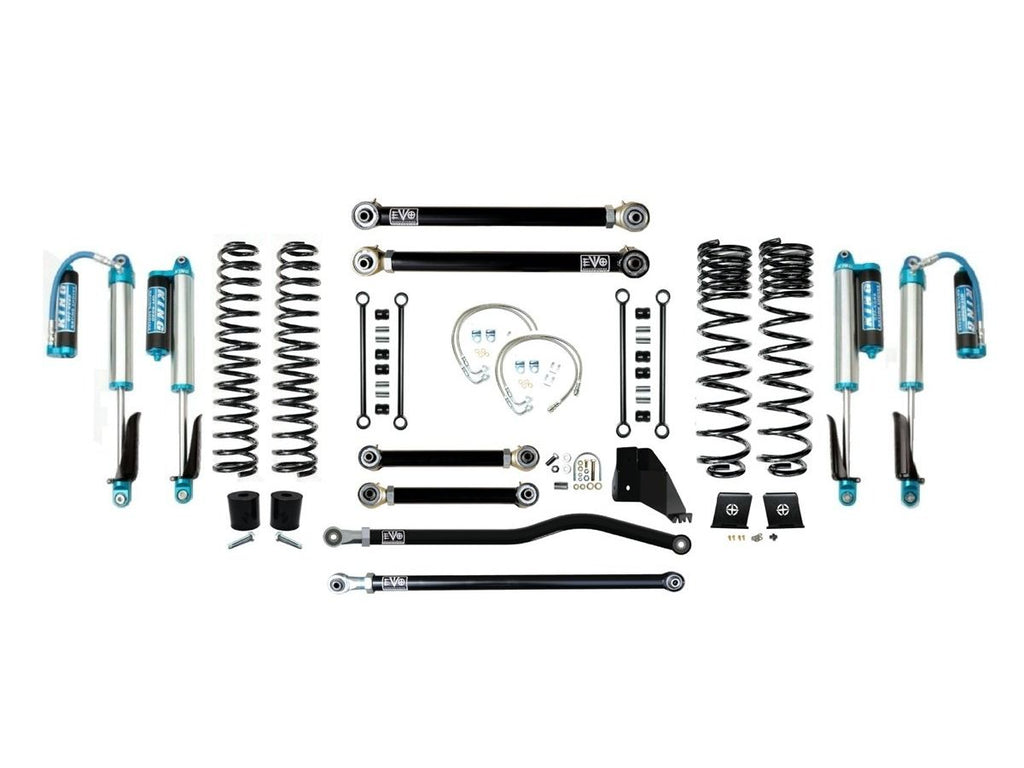

These kits allow for use of your choice of any aftermarket 6” lift shock or use of our EVO SPEC tuned 2.5” Remote Reservoir King Shocks. Both kits drive very well, the Overland Kits are better suited for less hard off-road crawling and more light off road and on road use.
Installation is easy using normal tools, with no drilling or cutting required. EVO MFG JT Enforcer kits are available in multiple configurations to suit your needs and budget, and are upgradable down the road.
All included Enforcer Arms use only rebuildable free articulating spherical bearings on all ends of each arm, giving restriction-free travel and articulation. The included Enforcer arms are manufactured from large diameter, thick wall DOM Steel Tubing for ultimate strength and longevity both on and off the trail.

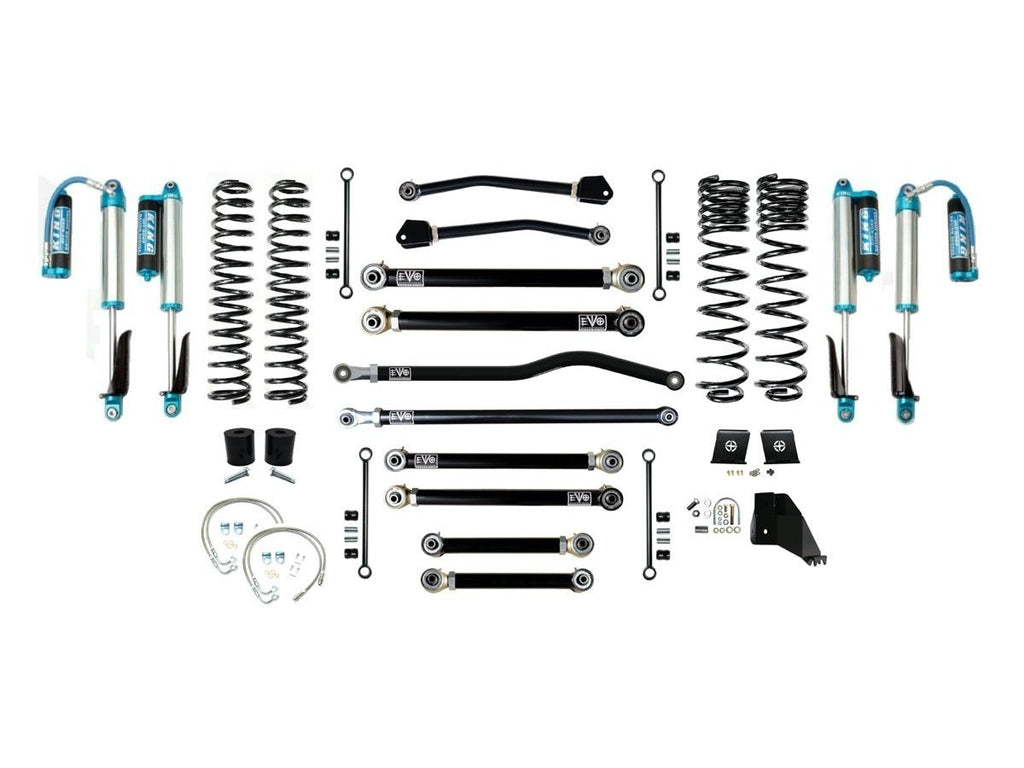

Please note that front and rear adjustable track bars to fine tune axle center are included with PLUS “P” kits, and “K” Kits include a set of 4 EVO SPEC Remote Reservoir King Shocks. For 4.5"/6.5" JT Lifts, Front Lower and Rear Upper Adjustable Control Arms and Front & Rear Adjustable Track bars are required for proper alignment/install. These components are included with Stage 3 and Stage 4 "PLUS" Kits.
Wheel spacers or aftermarket wheels with smaller backspacing and aftermarket front driveshaft are required for installation. Exhaust modifications are not required.
Upgrade your Jeep Gladiator JT with the EVO MFG 6.5” Jeep Gladiator JT Enforcer Suspension Systems for better ride quality and performance on and off the trail.
4.5"/6.5" JT Lifts: Front Lower and Rear Upper Adjustable Control Arms and Front & Rear Adjustable Trackbars are required for proper alignment/install. These are included with Stage 3 and Stage 4 "PLUS" Kits.
6.5" Gladiator kits require an aftermarket front driveshaft. Rear aftermarket driveshaft is recommended. One of many manufacturers is JE Reel 3518JLR-24F. Check with manufacturer for compatibility.
Optioned 2.5" EVO SPEC Remote Reservoir King Shocks (both Standard and Adjustable) are Gladiator Mojave Compatible.
EVO-3027B JL/JT Protek Front Shock Relocation Brackets are recommeded with 2.5" King shocks or with all larger aftermarket shock options. (Not Included)
Upgrades:
EVO-3097V Front Inner Fenders
EVO-600081KB Front Air Bumps
Read More
